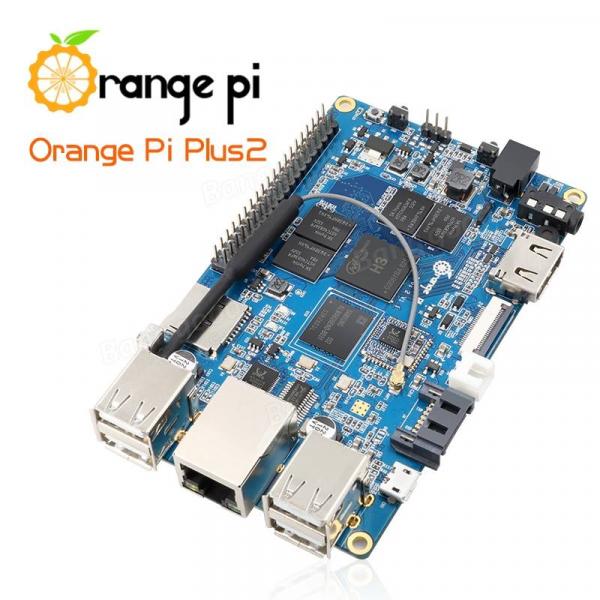

Orange Pi plus 2

Основной сервер (мозг системы)
CPU

H3 Quad-core Cortex-A7 H.265/HEVC 4K

GPU

·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0

Memory (SDRAM)

2GB DDR3 (shared with GPU)

Onboard Storage

TF card (Max. 32GB) / MMC card slot , up to 2T on 2.5 SATA disk
16GB EMMC Flash

Onboard Network

10/100/1000M Ethernet RJ45

Onboard WIFI

Realtek RTL8189ETV, IEEE 802.11 b/g/n

Video Input

A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input

MIC

Video Outputs

Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Integrated CVBS

Supports simultaneous output of HDMI and CVBS

Audio Output

3.5 mm Jack and HDMI

Power Source

DC input can supply power, but USB OTG input don’t supply power

USB 2.0 Ports

Four USB 2.0 HOST, one USB 2.0 OTG

Buttons

Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)

Low-level peripherals

40 Pins Header,compatible with Raspberry Pi B+

GPIO(1x3) pin

UART, ground.

LED

Power led & Status led

Other

IR input

Supported OS

Android, Ubuntu, Debian, Raspbian Image

Interface definition
Product size

108mm × 67mm

Weight

83g

Used in features: Получение баланса лицевого счета ребенка на питание; Проектирование и внедрение систем умного дома; Система умного дома; Управление телевизором;
